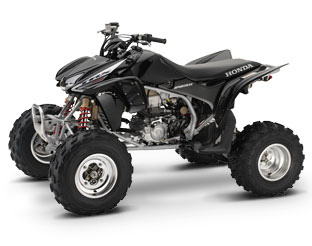

		"How do you make the 2005 Pro Quad Champion, ATVA GNC MX Champion, and Baja Champion even better? How about a new engine with even more power? How about new suspension settings and steering geometry? How about two versions; kick start or electric start? That's the new 2006 TRX450R. The best sport ATV we've ever made — quite a bold statement, considering Honda has dominated the class." The 450R is the biggest racer Honda makes and it's probably the nicest! It basically comes race ready! This is the bike that any racer would love to have! The 2006 is a step-up from the 2005 version. The 2006 has electric start, new suspension design, better engine, and more! This is a must have!




	Here are some specs on the 2006 TRX 450R: ENGINE Engine Type 450cc liquid-cooled single-cylinder four-stroke Bore and Stroke 96.0mm x 62.0mm Compression Ratio 12.0:1 Valve Train Unicam; four-valve Carburetion Keihin 40.0mm flat slide with throttle position sensor (TPS) Ignition CD with electronic advance Starter Electric or forward kick DRIVE TRAIN Transmission Five-speed Driveline O-ring-sealed chain CHASSIS / SUSPENSION / BRAKES Front Suspension Independent double-wishbone with Showa shocks, featuring adjustable spring preload, rebound and compression damping; 8.4-inch travel Rear Suspension Pro-Link with single Showa shock featuring adjustable spring preload, rebound and compression damping; 9.3-inch travel Front Brakes Dual hydraulic 174.0mm discs with twin-piston calipers Rear Brake Single hydraulic 190.0mm disc with single-piston caliper Front Tires 22 x 7-10 knobby radial Rear Tires 20 x 10-9 knobby radial DIMENSIONS Length 73.3 inches Width 46.3 inches Height 43.3 inches Wheelbase 50.2 inches Seat Height 32.8 inches Ground Clearance 4.4 inches Dry Weight 363.0 pounds (Electric Start)/357.0 pounds (Kick Start) Fuel Capacity 3.1 gallons MSRP: $6,649
